Description

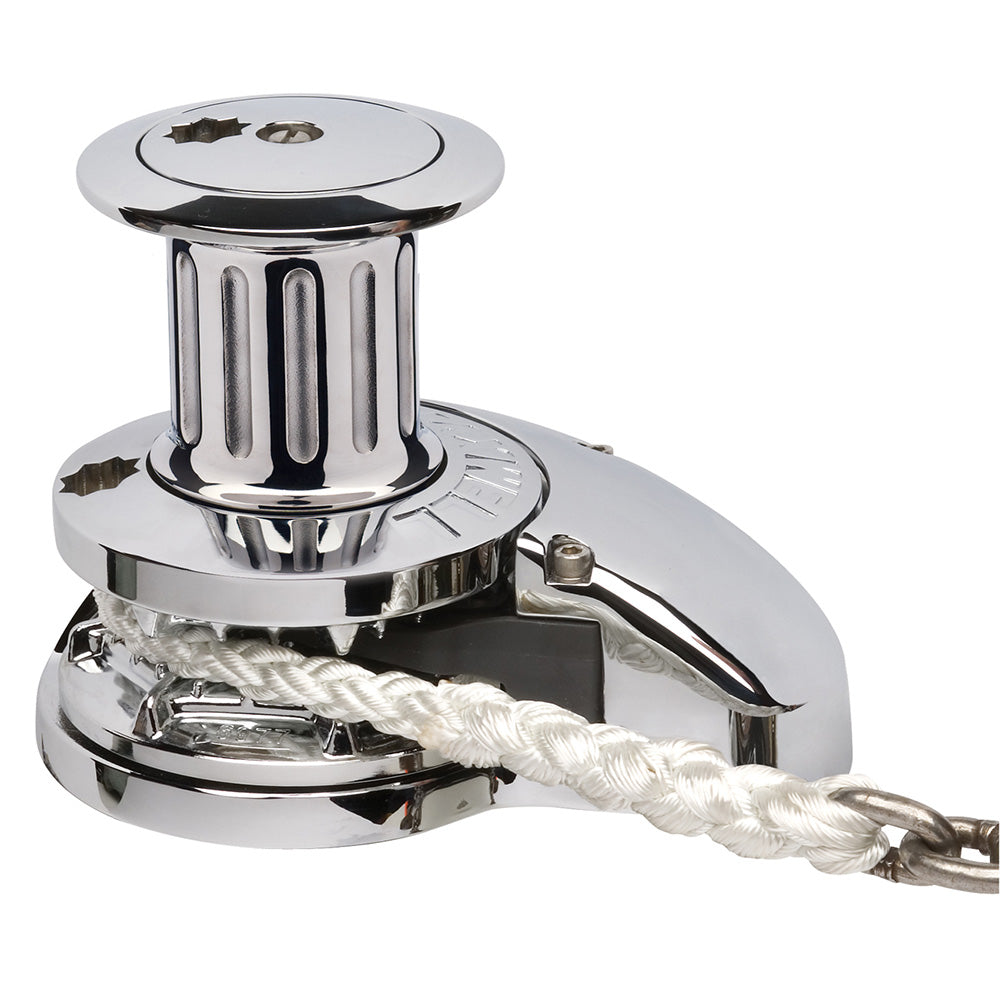

xRC10-8 Capstan 12V Windlass - 5/16" Chain & 5/8" Rope
The stainless steel (AISI 316) RC10 Series rope/chain windlass is part of Maxwell’s upper mid-range line-up and is suitable for boats ranging from 9m (30ft) to 14m (48ft). The RC10-8 is a second-generation rope/chain windlass and is a favorite choice for cruising yachts, launches, pilothouse vessels, and light commercial operators. The intentionally simple design yields excellent longevity and performance figures and has contributed to a well-earned reputation for reliability.
The patented Wave Design™ rope/chain gypsy (chain wheel) is able to accommodate a wide range of chain pitch differences (both imperial and metric) within the RC10’s specified chain size diameters.
Features:
- Works just as effectively with all-chain rode
- The gearbox can be removed by hand and without tools for easy maintenance and inspection
- Full disassembly capability of the top works utilizing only the handle provided and an Allen key
- Manual override and ‘Free Fall’, using the emergency crank/clutch handle provided
- Sealed oil bath and marine-grade hard anodized, alloy gearbox provides maximum output via a precision worm and worm wheel
- Every Maxwell RC10 automatic rope/chain windlass comes with top works, motor/gearbox and dual-direction solenoid
- The unique spacer tube design allows for installation through virtually any deck thickness, and the multiple mounting positions and self-aligning gearbox ensure optimal orientation in virtually all installation situations
Specifications:
- Maximum Pull: 1540 lbs. (700 kg)
- Static Hold: 3300 lbs. (1500 kg)
- Chain Size: 5/16 in. (8 mm)
- Rope Size (Nylon): 9/16 in. – 5/18 in. (14 mm – 16 mm)
- Chain Speed (Anchor Retrieval): 79 ft/min (24 m/min)
- Rope Speed (Anchor Retrieval): 65 ft/min (20 m/min)
- Power Supply (DC): 12 VDC
- Motor (Watt): 1000 W
- Net Weight: 42 lbs (19 kg)
- Hydraulic Pressure: 2000 PSI (138 Bar)
- Hydraulic Flow: 5.3 USgal/min (20 l/min)
- Net Weight (Hydraulic): 42 lbs (14 kg)
