Description
xFAX30 External Black Box Weatherfax & Navtex Receiver - Less Antenna

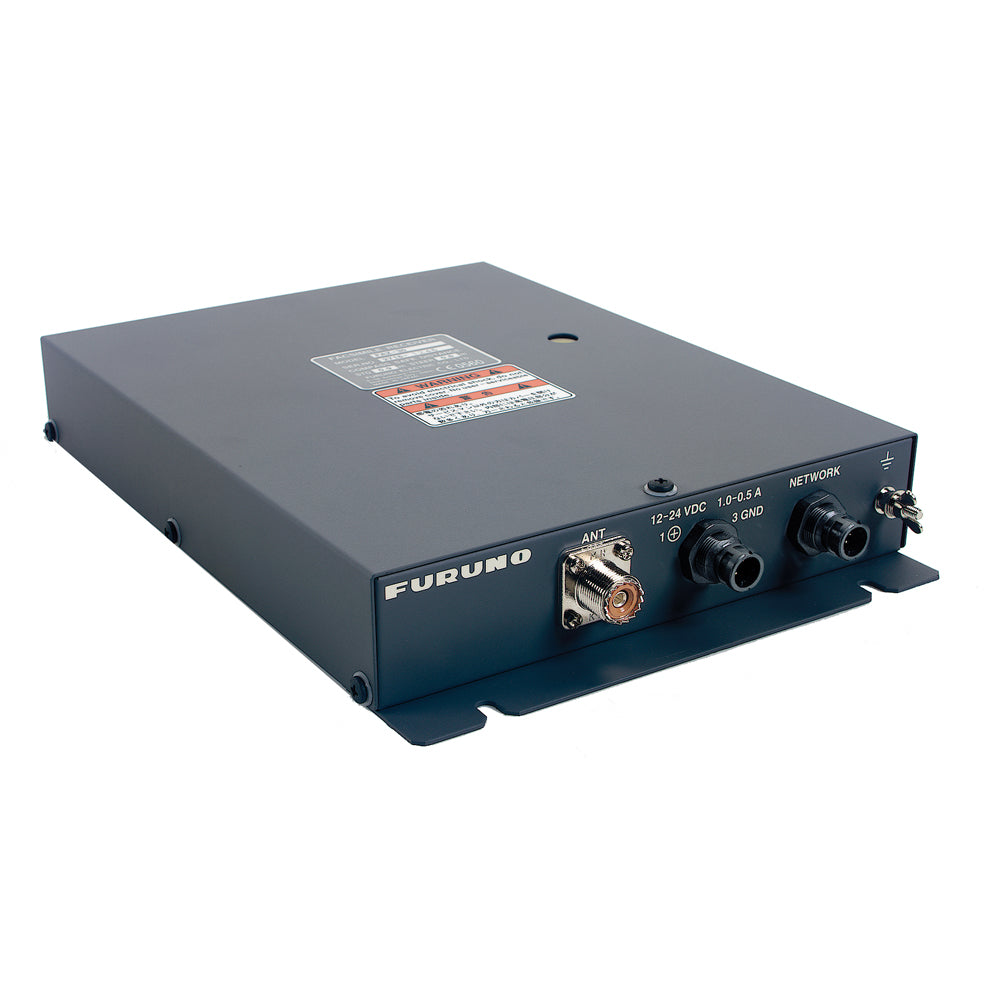

Furuno's FAX30 can turn any NavNet display or PC into a Weatherfax and Navtex receiver. This waterproof "Black Box" unit connects directly to a NavNet display or an Ethernet hub with a single Ethernet cable. If it is connected to an Ethernet hub that has multiple 10.4" NavNet displays attached, each of those displays will have access to the FAX30. In addition, the FAX30 has the capability of being connected to a standard PC with an Ethernet card.
The unit itself receives valuable weather images and navigational information. When connected to a 10.4" NavNet display, the image and information are displayed directly on the screen, with softkey menu options for ease of use. On a PC, the images and information are displayed by simply using your Web Browser. There is no complicated proprietary software to install or learn. You can even print all of the information using your PC and printer!
Combine the FAX30 with NavNet's true color Radar and you have the ultimate in weather tracking. Now you can navigate more safely even during uncertain conditions.
Features:
- Cost-effective paperless weather fax and Navtex receiver
- Connect directly to a 10.4" NavNet display or through an Ethernet hub
- Connect to a generic PC equipped with Ethernet
- Selectable display colors: 8 grey tones, monochrome, blue shades, pink and black, red and blue
- User-friendly softkey menu operation on NavNet display
- Web browser navigation on generic PC, no proprietary software required
- Print images and messages from generic PC and printer
- Store a maximum of 12 weather fax images (depending on file size)
- Navtex messages can be retrieved in a table listing of up to 130 stored files
- Stored images/messages can be shown at any time
- 320 user-programmed channels
- Noise rejection for clear image
- Thumbnail view for easy selection of stored images
- Phase and synchronization adjustments even after completed reception
- Fax Frequency Range: LF - 80 kHz to 160 kHz, MF/HF - 2 MHz to 25 MHz
- Navtex
- Frequency Range: 490 kHz or 518 kHz
- 1,000 channels
- Fax Mode of Reception: F3C, J3C
- Navtex Mode of Reception: F1B
- Waterproof- IEC 60529
Shipping Information:
- 8 lbs.
- 1 Carton
Power Requirements:
- 12-24V DC
- 15W Maximum
