Description

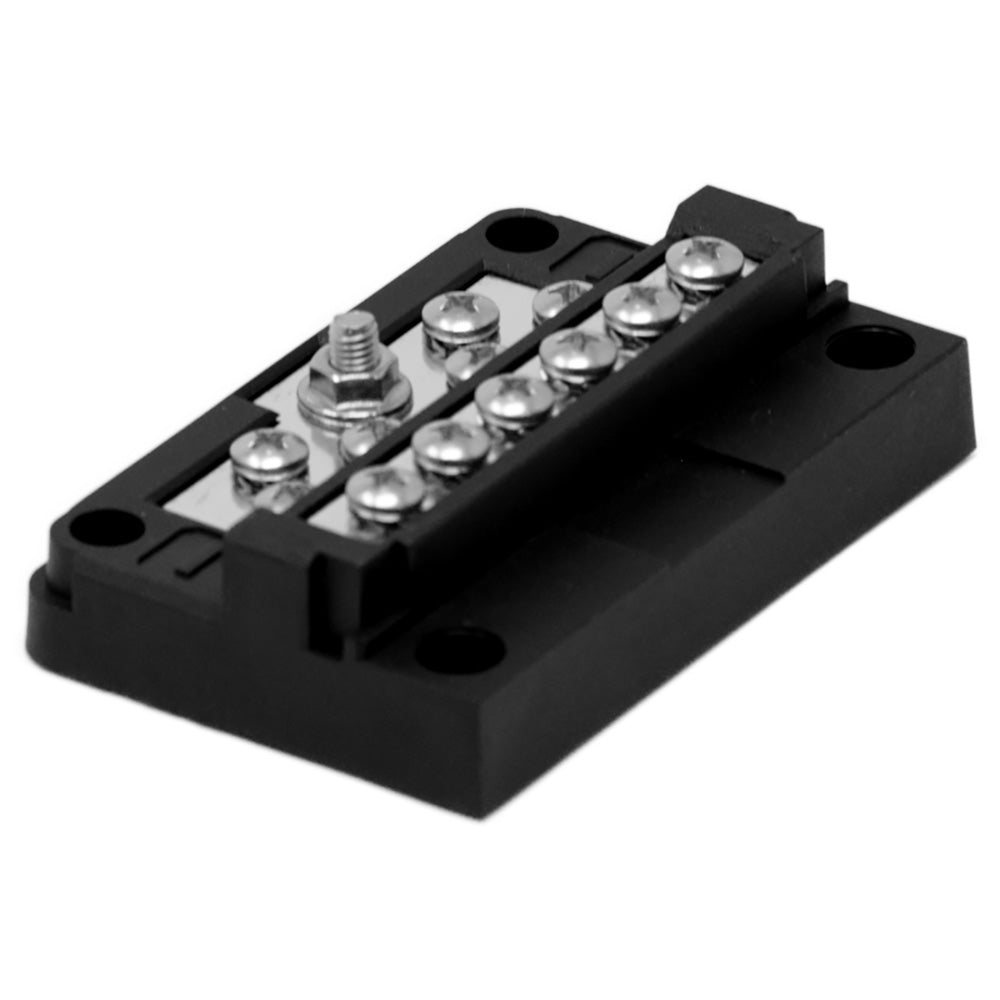

xRT Screw Terminal 12 Circuit Dual Lever Bus Bar
This Egis bus bar seamlessly integrates with RT fuse blocks, can be used as a standalone ground bus, or can be assembled with an existing RT Series fuse block line. Also, this multi-level low-amp has terminal screws for improved mounting.
Applications:
- The 12-circuit block ensures ground connection reliability with this compact and well-constructed ground bus block.
- RT series connection compatibility enables a smaller installation footprint and convenient negative terminal access when installed with a fuse block application.
Features:
- Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
- Seamlessly integrates with RT fuse blocks - use as a standalone ground bus or assembled with existing RT series fuse block lines
Specifications:
- Maximum Current (Entire Block) Amps: 100
- Maximum Current (Per Circuit) Amps: 30
- Max Output Wire Size: #10 AWG
- Voltage Range VDC: 0-36
- Number of Fuse Positions: 12
- Output Terminal Connection Ring Terminal Size: M4 / (#8)
Focal Features:
Robust Materials For Harsh Environments
All attachment hardware is constructed of stainless steel with self-locking mechanisms for long-lasting installations. A plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering-grade composite insulators support high-temperature application exposure, such as in engine compartments.
Seamlessly Integrates With RT Fuse Blocks
It can be installed individually on its own or assembled to the end of a 6, 12, or 18-position RT Series fuse block for a more compact overall footprint.
